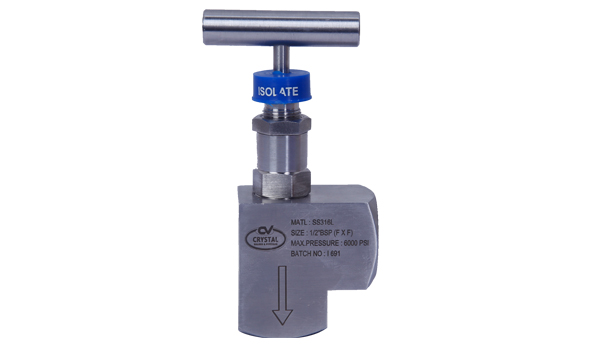

Type angle pattern needle valves designed for use on general applications requiring complete isolation and throttling of media. Produced as standard angle body at 90 degrees. Specially designed conical metal tip (type CT)ensures perfect alignment for positive bubble tight shutoff. Available with end connections in sizes from 1/4” to 1/2” and a wide choice of female screwed, male to female screwed or socket weld.
Applications
High pressure instrument line shut off. Instrument and gauge isolation. Drain valve. Liquid and vapor service.
Technical Specificatons
Design Pressure
6000 PSI
Max temp.
240 °C
Needle Tip
Stainless Steel
Material
Stainless Steel
Gland Packing
PTFE
Stem
(Type CT) Conical tip press fitted hard chrome plated
