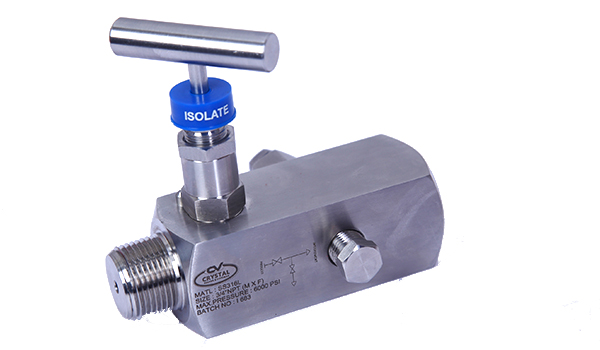

Type multiport gauge valves are ideal for use on gauge or instrument installations without further penetrations of the main piping. A gauge valve with multiple outlets and inlets with in various sizes and connections. The standard three 1/2” NPT female screwed outlet ports offer a flexibility of alternative applications. Available with a male inlet and three female outlet ports or female inlet and three female outlets. Bleed valves and plugs to suit outlet ports supplied optional.
Applications
Mounting of instruments or multiple gauges Instrument isolation. Instrument installation with separate vents and calibrate connections Liquid and vapor gas service.
Technical Specificatons
Design Pressure
6000 PSI
Max temp.
240 °C
Feature
Replaceable soft seat which absorbs contaminants and operates in dirty service and
straight through design for high capacity bidirectional flow
Gland Packing
PTFE
Stem
(Type CT) Conical tip press fitted hard chrome plated
